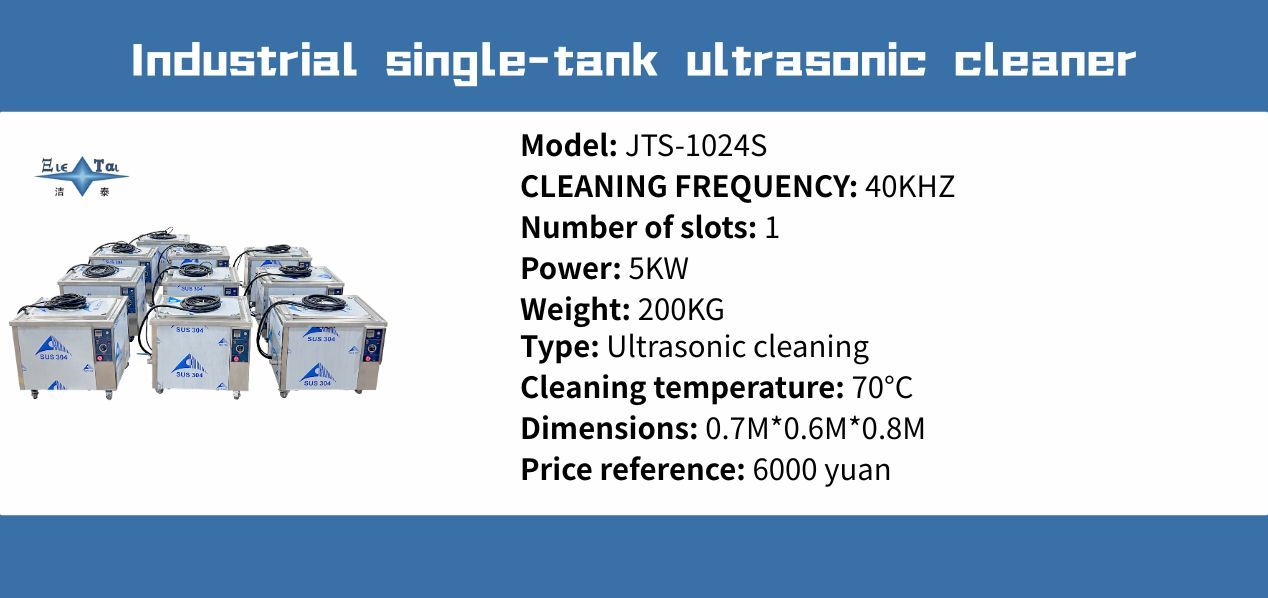

Industrial Single Tank Ultrasonic Cleaner (For Auto Parts)
—— Heavy Oil Contamination & Deep Cleaning Solutions for Complex Structural Parts
Product positioning
Efficient cleaning equipment specially designed for auto parts (engine block/cylinder head, bearing/gear, brake caliper, injection mold), integrating three core modules: dual-frequency ultrasonic demulsification, intelligent temperature control lipolysis, and three-stage filtration and chip cleaning, it achieves 99.7% oil removal rate and 0.1mm blind hole without residue for cutting fluid (mineral oil/synthetic ester), abrasive paste, metal chips (≤50μm) and other pollutants. The equipment adopts a single-tank independent design (volume 50-500L optional), suitable for small and medium-sized batch production and laboratory scenarios, and the surface tension of the workpiece after cleaning is ≥ 72mN/m, which meets the high-precision cleaning needs of auto parts before electroplating, spraying and assembly.
Intelligent control system
1. One-click process operation
7-inch touch screen: preset 10 sets of auto parts special cleaning formulas (engine parts/bearings/molds, etc.), support parameter customization (ultrasonic frequency, cleaning time, temperature)
Weight sensor: real-time monitoring of workpiece load (accuracy ±0.1kg), automatic adjustment of ultrasonic power and cleaning time (adjustment accuracy ±5%)
2. Safety redundancy design
Over-temperature protection: automatic power-off when the temperature exceeds the set value of 10°C, equipped with bimetal thermostat buzzer alarm
Leakage protection: grounding resistance ≤4Ω, operating current≤30mA, in accordance with GB/T 16895.21 standard
Energy-efficient design
1. Temperature control and power optimization
PID Intelligent Temperature Control: 30% more heating efficiency, a single batch (100L tank) takes < 15 minutes to heat up to 60°C
No-load sleep mode: Automatically reduce the power to 10% when no load is detected, and the standby power consumption < 50W
2. Environmental compliance
Water-based equipment: standard oil-water separator (separation accuracy 5μm), wastewater COD≤80mg/L, meet GB 8978 level 3 standard
Solvent-based equipment: Activated carbon adsorption box (exhaust gas treatment efficiency 90%) can be selected, and the VOCs emission concentration < 100mg/m³
