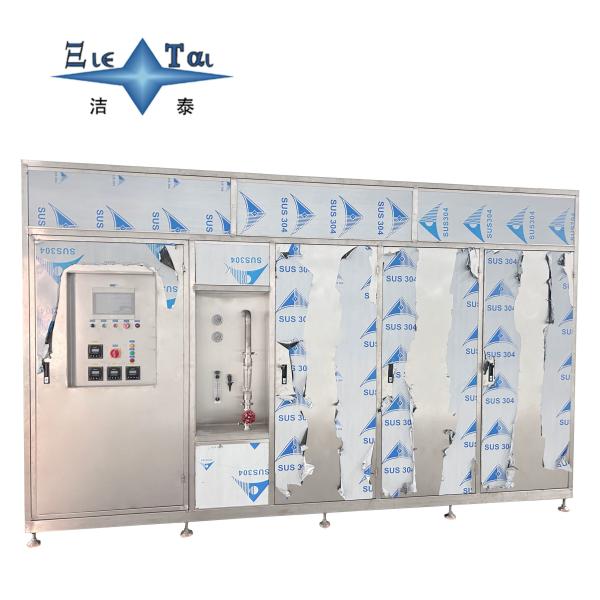

Ultrasonic Wastewater Treatment Equipment - An Innovative Solution for Industrial Sewage Treatment
This series of ultrasonic wastewater treatment equipment adopts high-frequency ultrasonic cavitation effect technology. Through high-frequency vibrations above 38kHz, a large number of microbubbles are generated in the water body. At the moment of bursting, these bubbles release extreme environments of 4000K high temperature and 100MPa high pressure, which can efficiently decompose refractory organic compounds (such as azo dyes in printing and dyeing wastewater and antibiotic residues in pharmaceutical wastewater), while destroying microbial cell membranes to achieve sterilization and disinfection. The equipment is equipped with a PLC intelligent control system, which can automatically adjust the ultrasonic power (adjustable from 500W to 5000W), frequency, and treatment duration according to real-time water quality data, ensuring optimal treatment effects under normal temperature conditions.
- Normal Temperature Operation: No heating device is required, and energy consumption is reduced by more than 60% compared with traditional thermal treatment;
- No Chemical Additives: Pure physical treatment process avoids secondary pollution and complies with the GB/T18920-2002 reclaimed water reuse standard;
- Low Maintenance Design: Built-in ultrasonic online cleaning system reduces the backwashing frequency of membrane components by 70%, extending the service life to more than 5 years.
Aiming at the wastewater characteristics of different industries, we provide modular solutions:
-
Textile Dyeing Wastewater Treatment System
- Process Configuration: Ultrasonic Cavitation + Ozone Catalytic Oxidation + MBR Membrane Separation
- Treatment Capacity: 10 tons/day standard model (customizable up to 1,000 tons/day)
- Treatment Effects:
- COD reduced from 2,000 mg/L to below 50 mg/L, with a chromaticity removal rate > 95%;
- Water reuse rate reaches 70%, saving over 4.5 million tons of water annually (taking a 30,000 tons/day project as an example);
- Typical Case: After a textile enterprise in Guangdong adopted this equipment, the service life of RO membranes was extended by 50%, and the annual operating cost was saved by over ten million yuan.
-
Electronics Cleaning Wastewater Treatment Solution
- Core Processes: Ultrasonic Demulsification + Fenton Oxidation + Activated Carbon Adsorption
- Technical Parameters:
- Treatment Capacity: 10 tons/day (expandable to 50 tons/day)
- Voltage: 380V, Power: 7.5kW
- Floor Area: 8㎡ (integrated design);
- Treatment Efficiency:
- Petroleum-based substances reduced from 283 mg/L to below 10 mg/L;
- Removal rate of heavy metal ions (such as nickel and chromium) > 99%, complying with the first-level discharge standard of GB8978-1996.
